Technical data for removable connecting bracket 8
The following values are from the released technical product documentation. For selection, the installation position, load, span, connection technology, and the complete design must be checked together.
| A | 12,5 |
|---|---|
| B | 15 |
| C | 9 |
| D | 12 |
| Material | Steel |
| Weight (g) | 22,5 |
| Slot size | 8 |

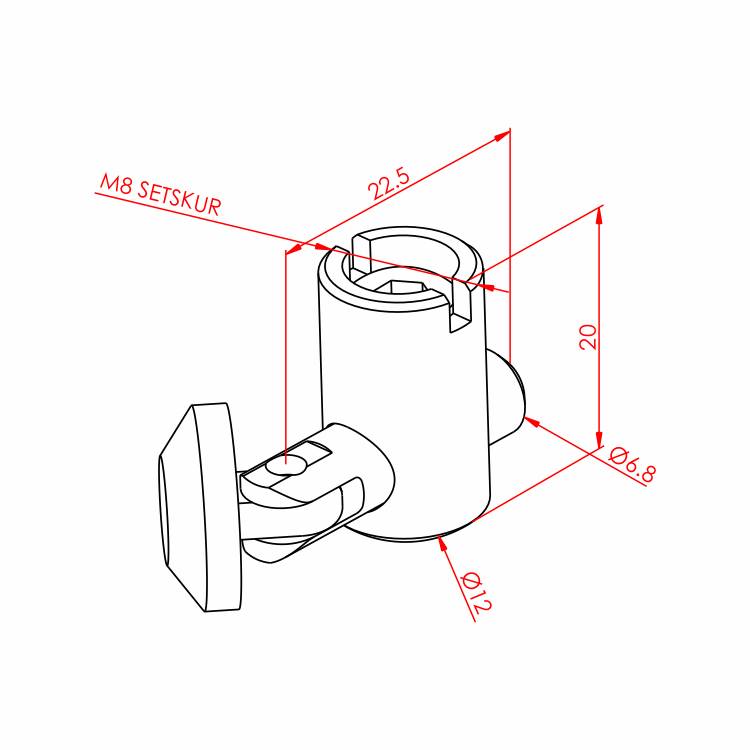

The product gallery contains 8 approved images. Depending on the product, these include dimensional drawings, detailed views, and application examples.
Matching components and system pathways
Profiles, connectors, t-nuts, end caps and functional accessories must match the respective profile series, slot geometry and application. Use the following areas or send rotec your drawing and parts list for clear allocation.
Aluminum framing profiles | Connecting technology | Accessories | Technical consulting
Technical documentation and project inquiry
For the project review, you can submit item numbers, cutting lengths, quantities, drawings, and CAD documents. Ferhat Macar will personally support you with the selection and compilation.
Removable corner bracket 8 for aluminum system profiles
This bracket enables the connection of angle-cut profiles with the T-slot of another profile. It enables the connection of diagonally cut surfaces from 60°-180° on profiles with an 8 mm slot size.
The component belongs to the butt joints area. It supports clear planning because function, profile, and accessories can be coordinated with one another in a targeted manner.
Typical Applications
- Frames and racks
- Corner joints and stiffeners
- Enclosures and partition areas
- modular extensions
Selection and technical assignment
When making your selection, the profile series, slot size, dimensions, mounting type, installation situation, and intended load must be considered together.
Compatibility should be checked based on the article number, profile series, and existing groove. Similarly named components are not automatically interchangeable.
Consulting and project-related compilation
rotec supports industrial companies, mechanical engineers, plant manufacturers, and designers in the selection of aluminum system profiles, connection technology, and accessories. The more precisely the installation situation is described, the more reliably the suitable combination can be put together.
Information for a reliable request
- desired item number or product name
- Profile series and slot size
- Quantity and required dimensions
- Sketch, drawing or description of the application
- special requirements for installation and environment
Frequently asked questions about detachable mounting angle 8
What is the removable joining bracket 8 used for?
The product is used for structural connections of aluminum system profiles. The specific application depends on the complete design and the associated system components.
Does the product fit every aluminum profile?
No. Compatibility should be checked based on the article number, the profile series, and the existing groove. Similarly named components are not automatically interchangeable.
Does rotec assist with the selection?
Yes. rotec checks the available project details and assists in putting together the matching profiles and components. The final technical approval depends on the application and load.
